WEEKLY TIME SWITCH
Model WTS1

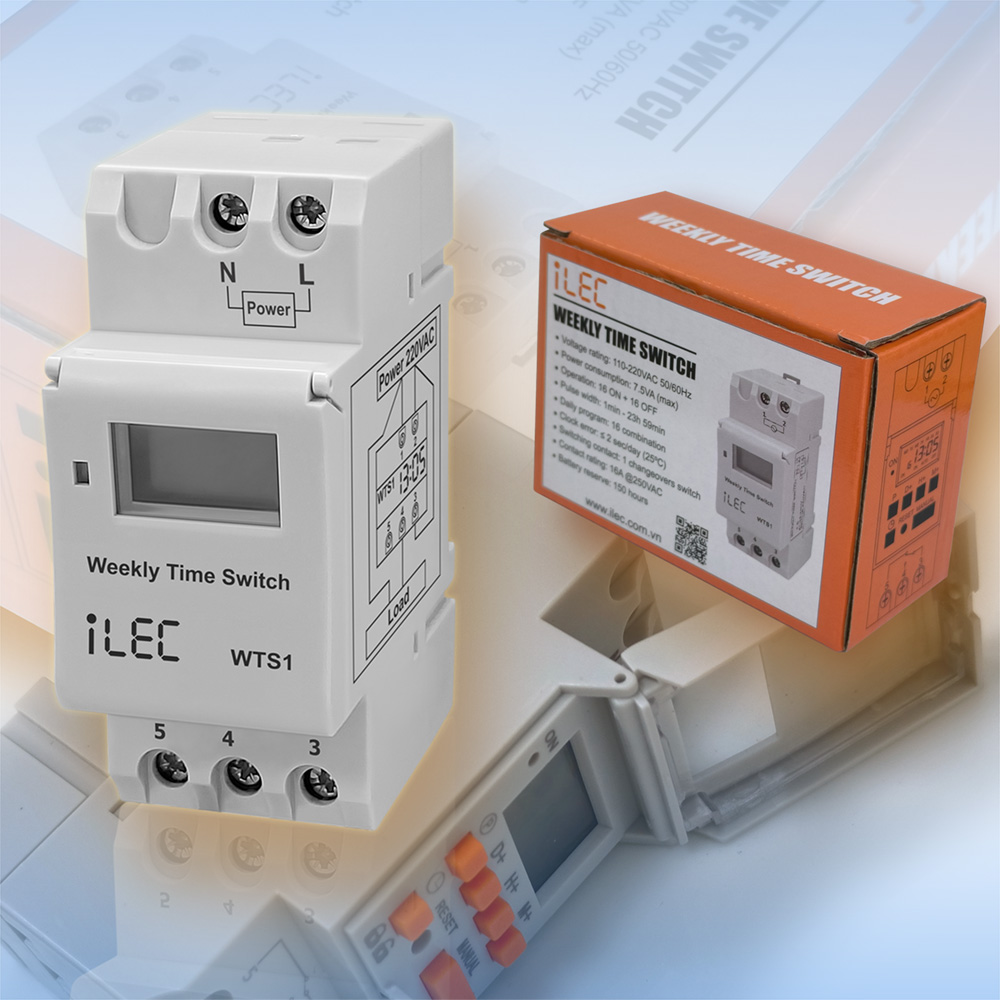

General description
- The WTS1 is a programmable digital timer switch with relay output.
- It can be used to turn on or off lights, appliances or other small loads on specified days of the week and times.
- The switching on and off times are repeated daily and (or) weekly.
- The timer support up to 16 different programs daily / weekly schedules.
- Manual mode is available to overrule the programmed relay events.
- A super capacitor inside the timer switch keep the RTC running at least 150 hours (700 hours expected) and it will be charged when the timer is connected to an AC power.
- The DIN rail mount of this timer switch makes it suitable for power management in a control panel.
Specifications
| Parameters | |
| Number of circuits | Change over switch (SPDT) |
| Rated voltage | 110–220VAC, 50/60Hz |
| Power consumption | 4.5VA (max.) |
| Operation | 16 ON + 16 OFF |
| Pulse width | 1min – 23h 59min |
| Daily program | 16 combination |
| Clock error | ≤2 sec/day (25ºC) |
| Switching contact | 1 changeover switch |
| Contact rating | 16 @250VAC (Resistive) 8A @250VAC (pf=0.8IND) |
| Battery reserve | Warranty 150 hours, espected > 700hours (Rechargeable) |
| Load capacity | 30(16A) 240VAC (Ohmic load cosφ=1) |
| Display | LCD realtime Hour/Minute and ON / AUTO / OFF
* Days of week + Real time clock * Auto / On / Off * Relay status (ON or OFF) |
| Service life | Mechanically & Electrically: 10.000 hours |
| Operating temperature | 10ºC ~ 55ºC |
| Humidity | 35 ~ 85% RH |
| Installation | DIN rail 35mm |
| Dimension | 87 x 36 x 69 (mm) |

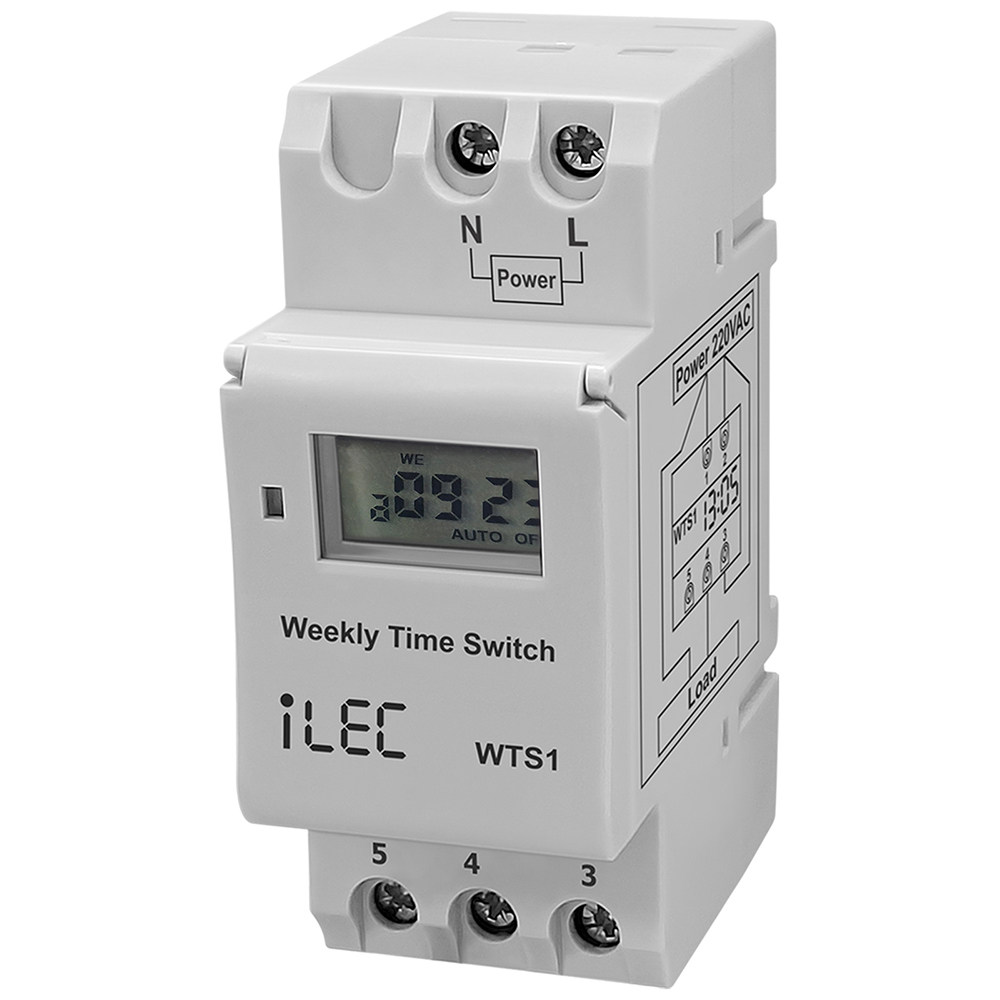

Connection terminals
| ● L, N : | Auxiliary power supply 110–220VAC ON LED will light when power is available. |
| ● 3, 4, 5 : | Changeover switch SPDT. Terminal 3 is Common 3-4: NO contact 3-5: NC contactable |

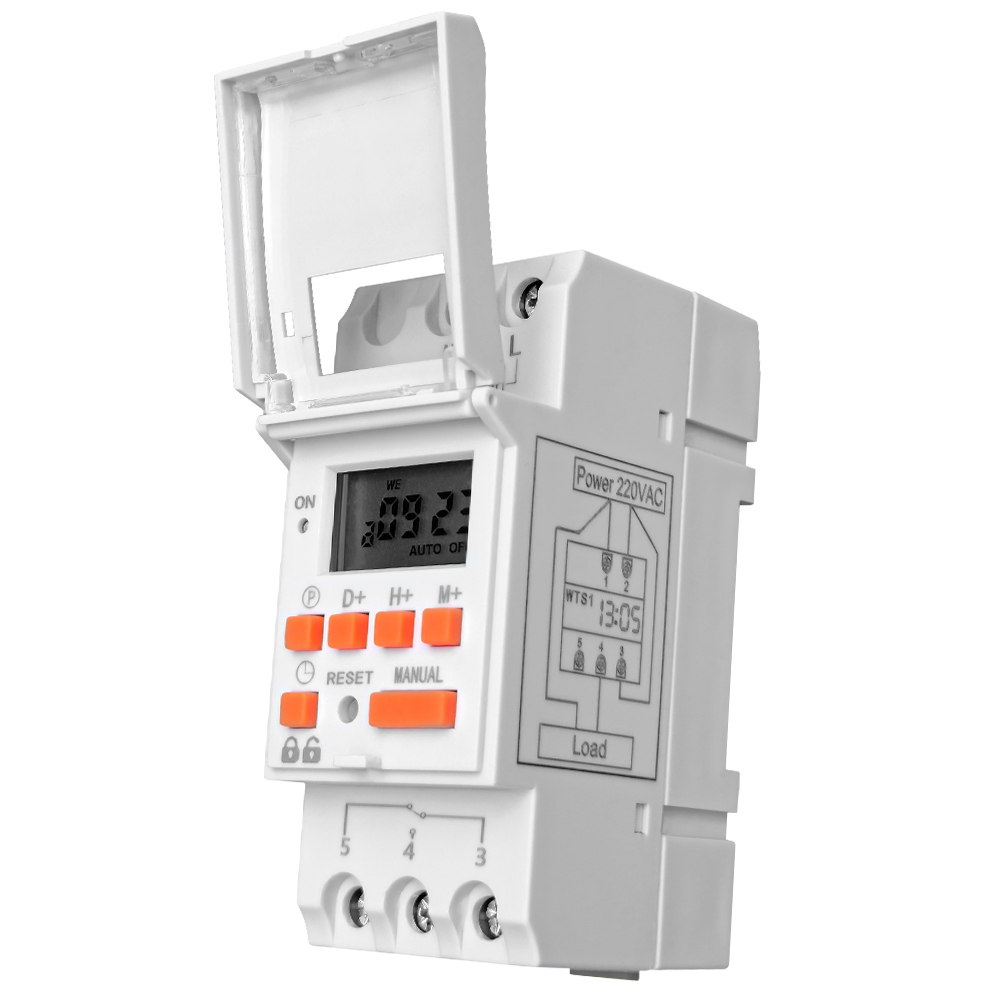

Front Panel Description
LCD display explanation
Operating method
- First time use this timer switch, please input power and left battery recharge.
- After then press " RESET "
- Clock setting: Press " D+ " key, " M+ " key respectively to adjust clock of Timer to accurate ADTE, HOUR, MINUTE
Resources & Support
- Technical document: iLEC WTS1
- Operating & Apllications: iLEC WTS1
- Pricing & Ordering: View Details
