SMART ENERGY PROTECTION METER
Model SEP-63/1PN
| The WIFI Smart Circuit Breaker Protector is designed for AC 50Hz/60Hz circuits with a rated voltage of 220V.It enables remote control, multi-user access, and scheduled ON/OFF switching. It is suitable for use in homes, schools, factories,municipal projects, street lighting, agricultural motors, water pumps, floor heating systems, water heaters, and other remote intelligent power control applications. |  |
Features
- This product features a backlit LCD display for real-time monitoring of voltage, current, leakage current, and energy consumption.
- It is equipped with a high-precision metering chip 24-bit ADC sampling for accurate measurement.
- It supports adjustable settings for overvoltage, undervoltage, overcurrent, leakage current, and delay time, with cumulative energy monitoring. A one-touch factory reset function is also available.
- When connected to a network, the device supports remote ON/OFF control and real-time monitoring via a mobile app. Parameters such as voltage, current, leakage current, and energy consumption can be monitored in real time.
- Users can configure automatic trip/disconnection functions. Energy statistics can be reset manually or automatically at midnight for daily energy tracking and billing purposes.
- Without requiring additional devices, the unit supports automatic reclosing and provides undervoltage, leakage current, and overcurrent protection.

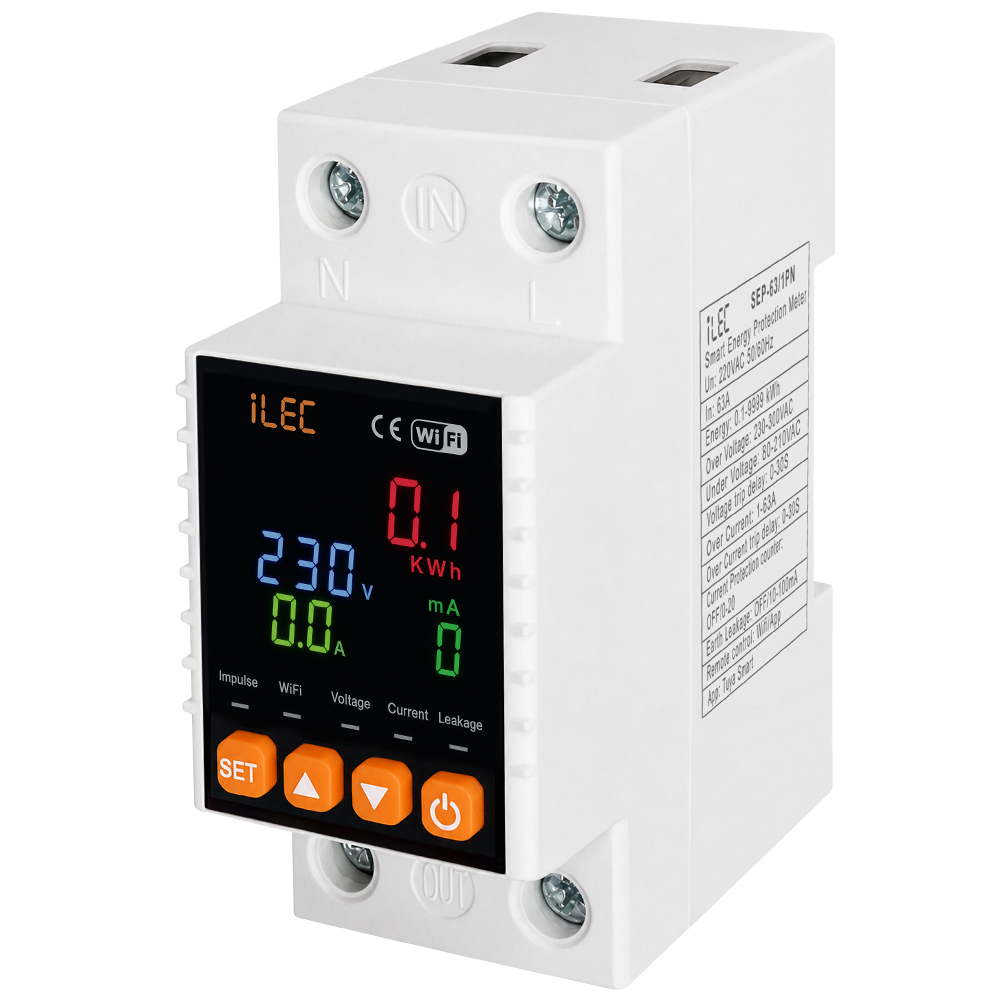

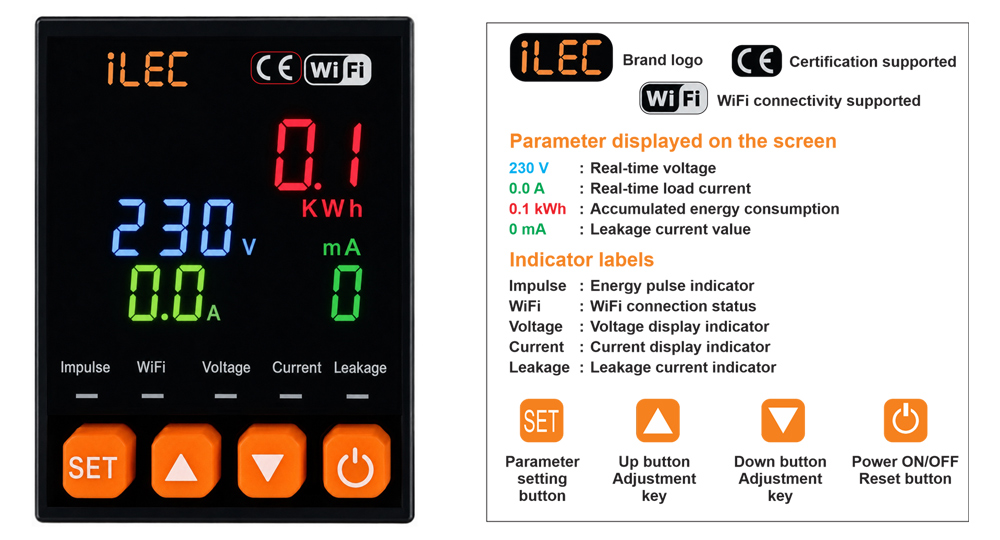

Front-Face Panel
Specifications
| PARAMETER | VALUE |
| Rated voltage | AC 220V |
| Rated current | 63A |
| Rated frequency | 50/60Hz |
| Includtive | 6kW (Motor type) |
| Resistive load | 13kW (Electric heating and lighting) |
| Power consumption | < 2W |
| Ambient temperature | -250ºC ~ 65C |
| Humidity | < 95% |
| Installation method | DIN rail mounting |
| Control mode | Manual / Mobile remote |
| Device setting * Overvoltage setting * Undervoltage setting * Overcurrent setting * Leakage current * Delay setting |
* 30V–300V, adjustable in 1V steps * 110V–210V, adjustable in 1V steps * 1A–63A, adjustable in 1A steps * 10mA–100mA, adjustable in 1mA steps * 1s–999s, adjustable in 1s steps |
| Display accuracy * Volatge * Current * Leakage * Delay setting |
* 1V * 0.1A * 1mA * 0.1kWh |

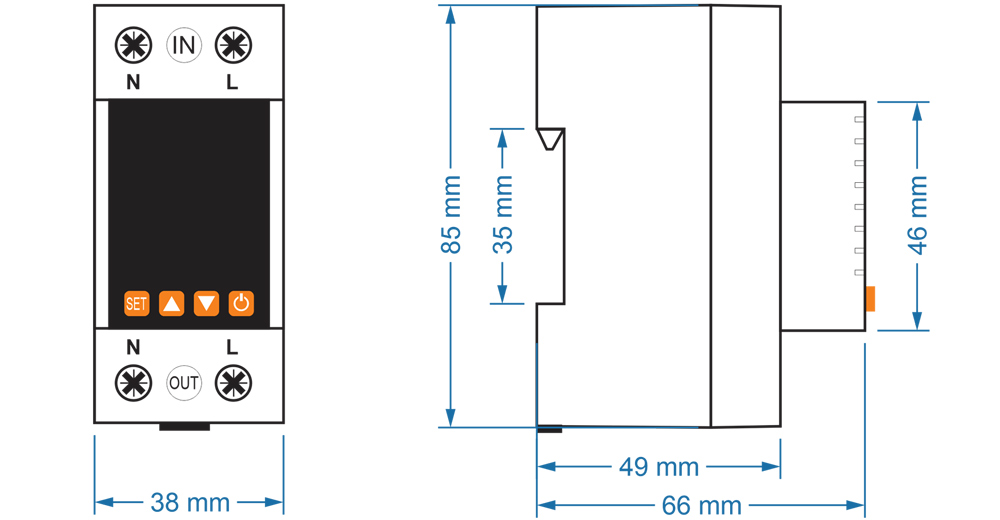

Dimension drawing

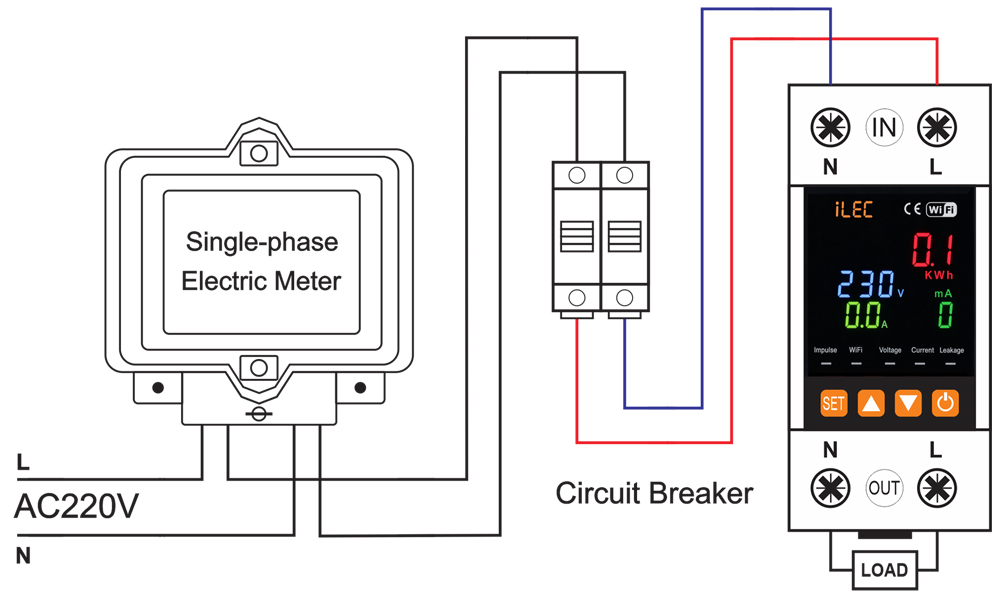

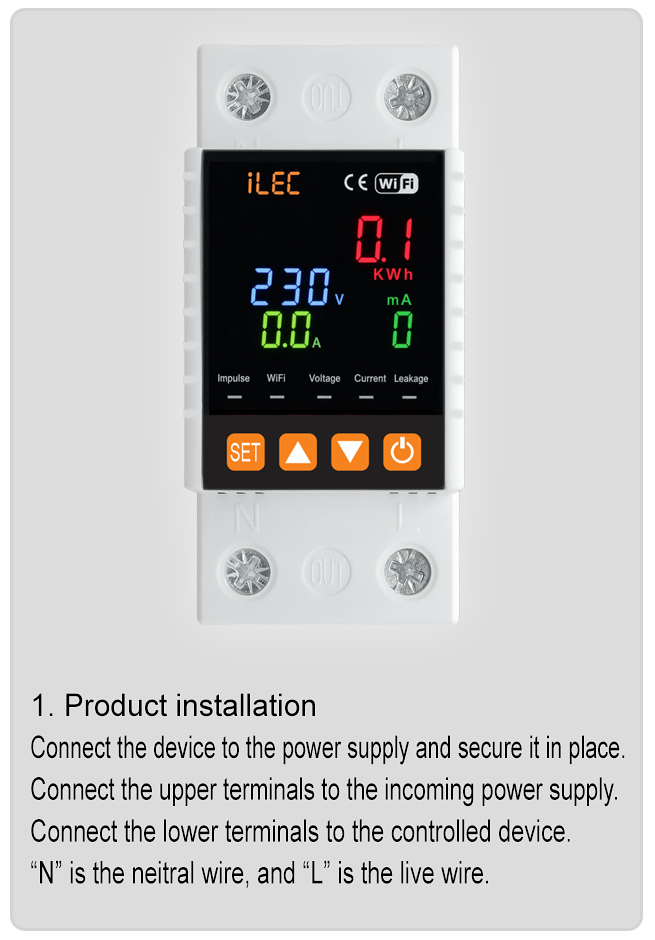

Wiring diagram

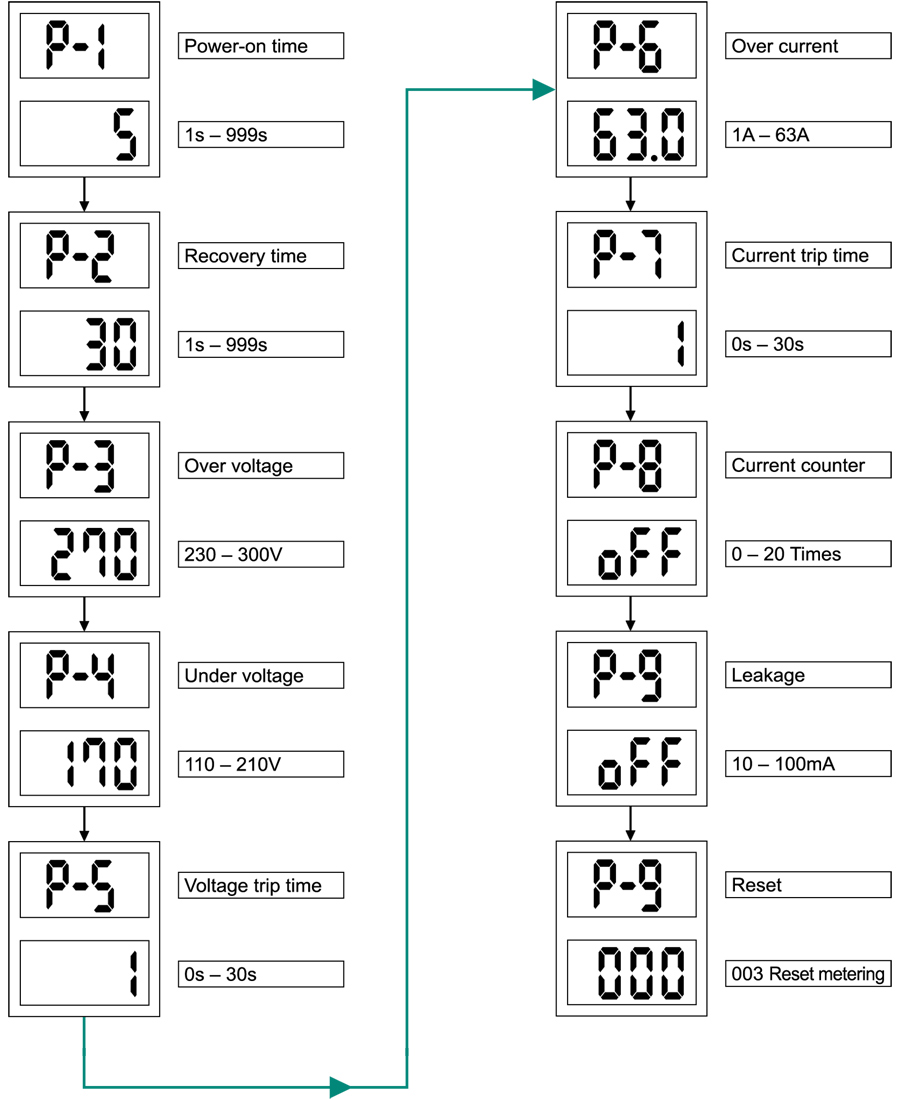

Product setting
NETWORK OPERATION

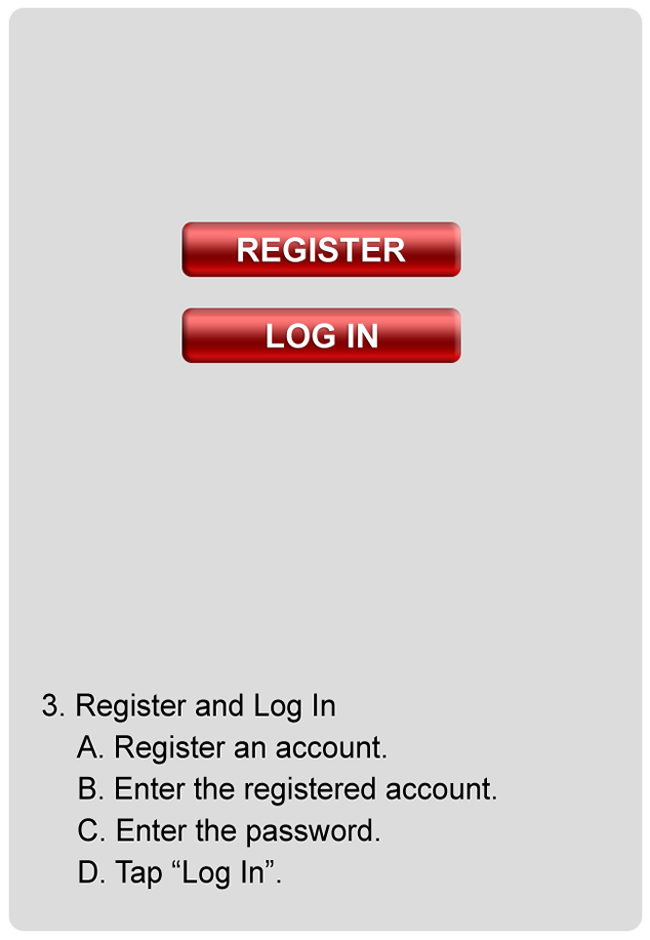

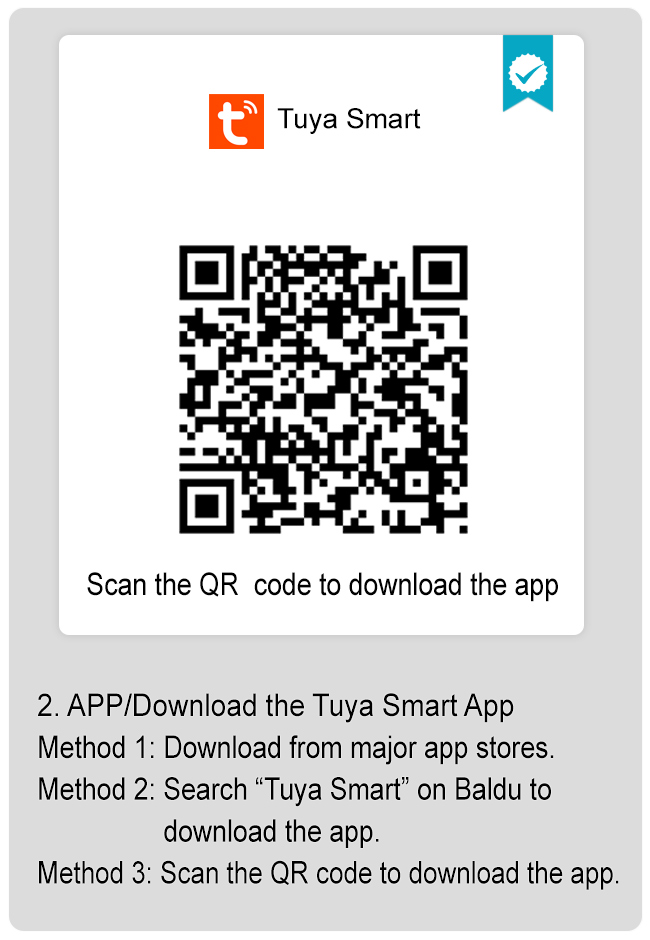

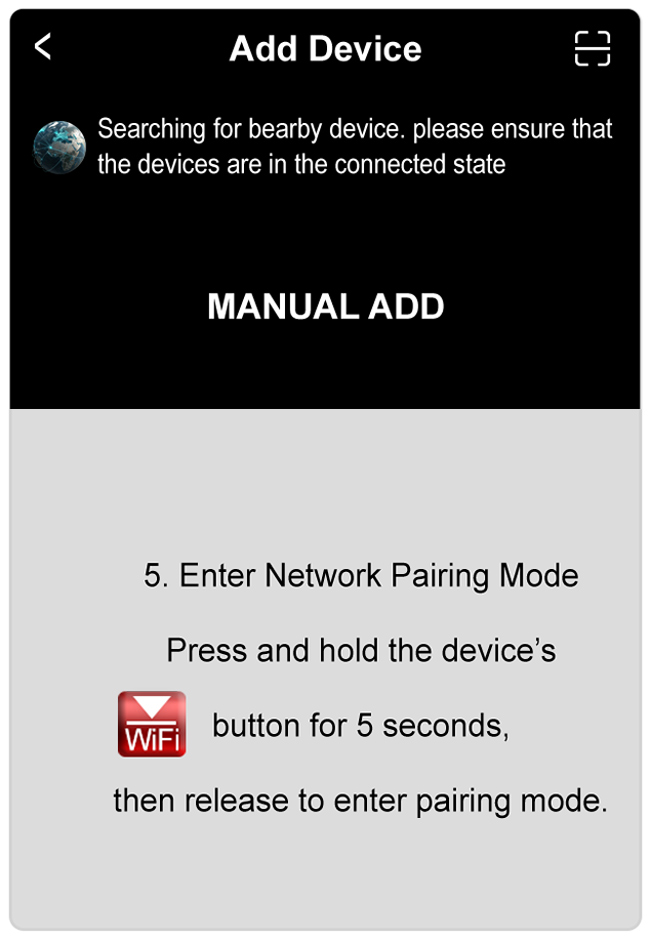

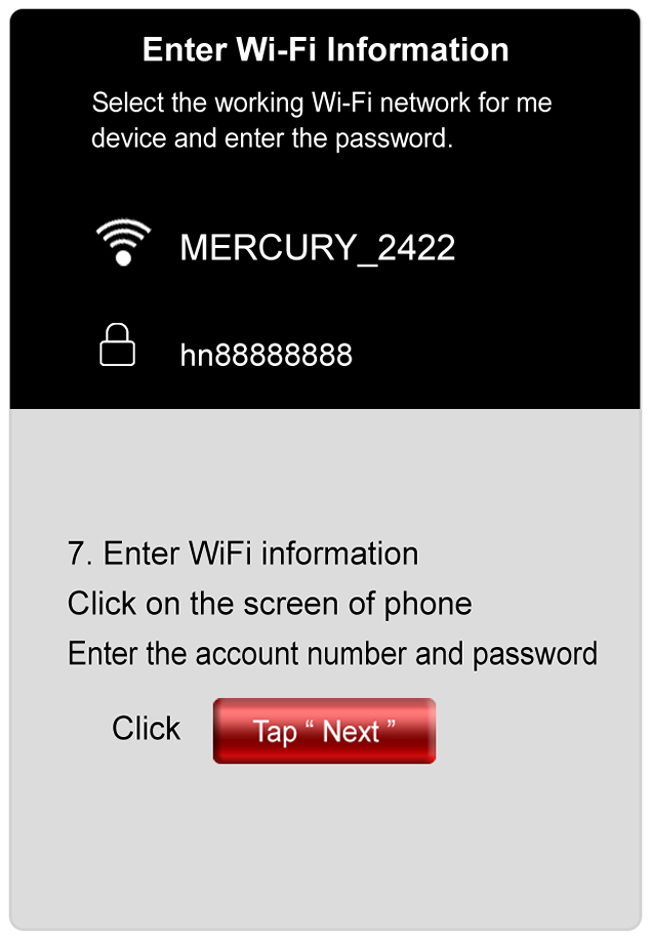

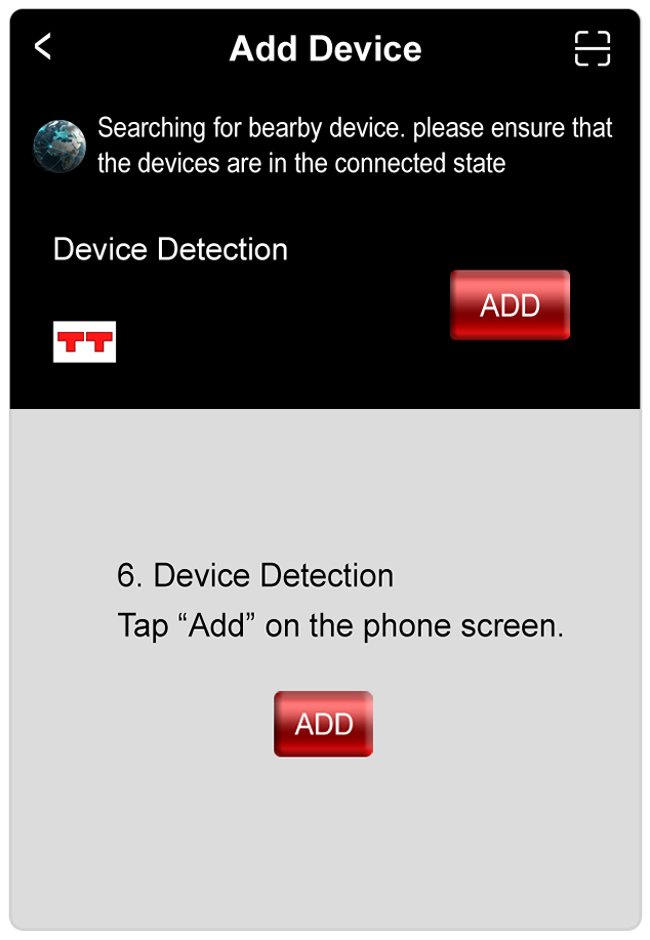

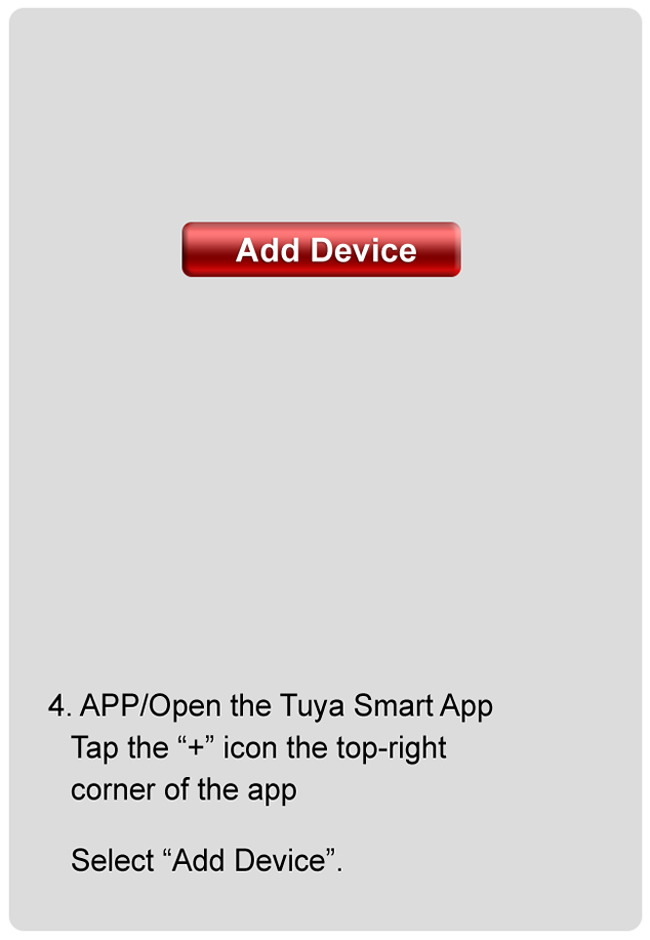

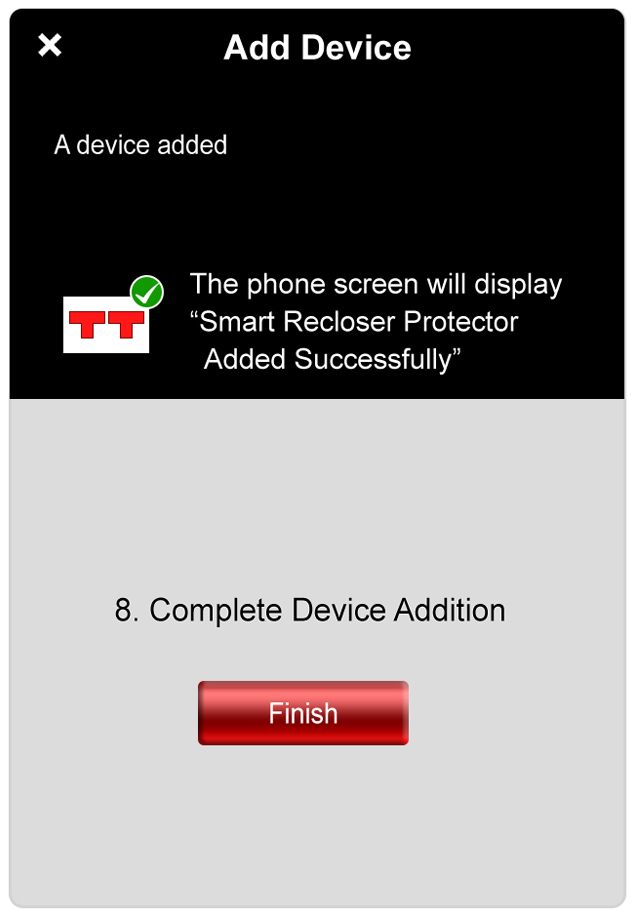

Mobile Network Operation Instructions
 |
 |
 |
 |
 |
 |
 |
 |
