JP Split Current Transformer

Biến dòng hở tiện lợi cho việc lắp đặt nhanh, không cần tháo busbar và dây động lực, tỉ số từ 100/5A đến 6000/5A. Kích cỡ cửa sổ busbar 20x30, 40x60, 50x80, 50x100, 60x125, 60x140, 80x120, 80x160, 80x200mm

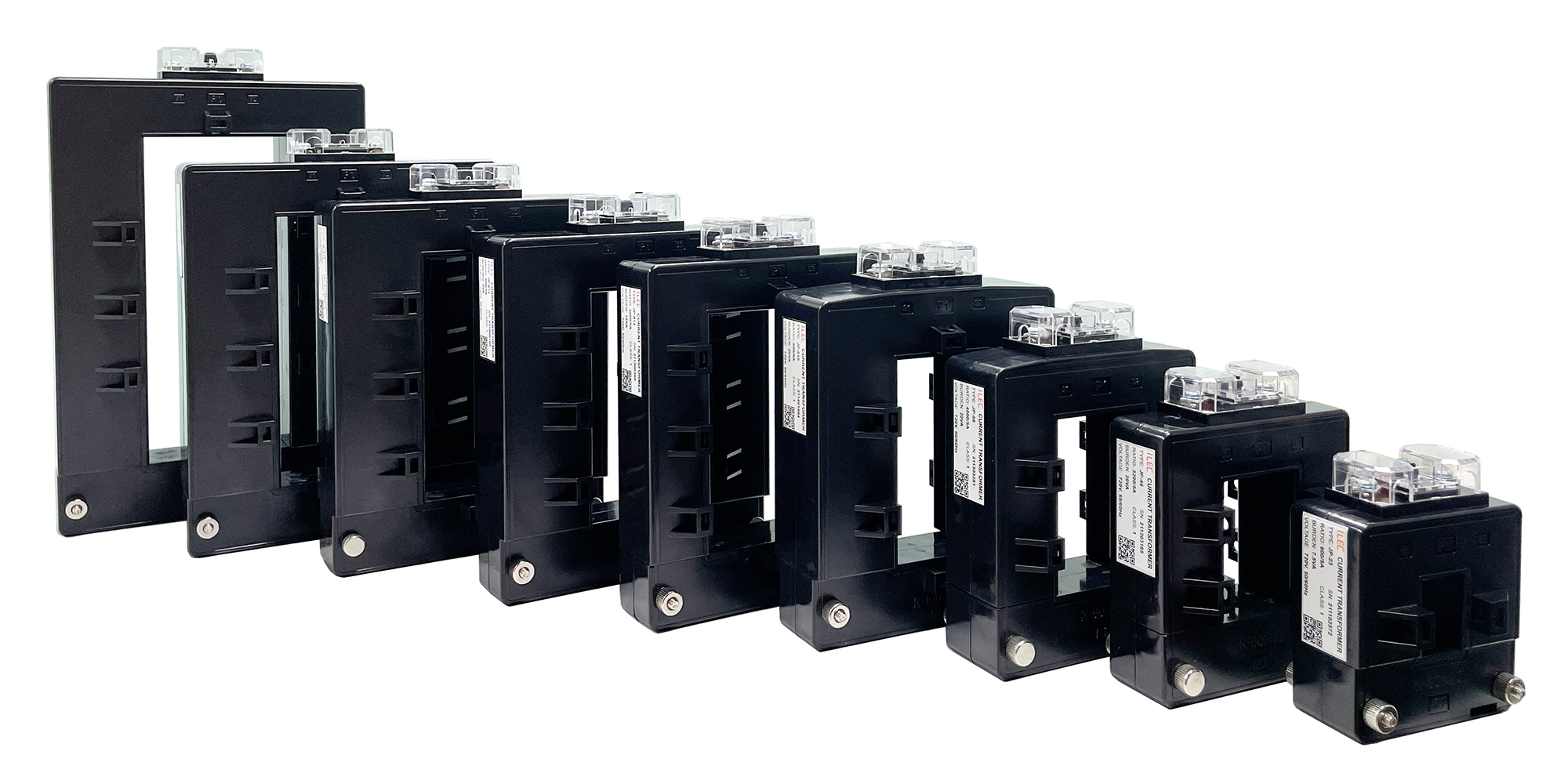

JP: Standard Split Current Transformer

The JP series current transformer has been specially designed to facilitate their installation in new or already existing networks. They may be installed without opening any cable or bus-bar circuit. The connection of conventional CTs usually requires the interruption of the primary side circuit to pass cables or bur-bars through the transformer core or to connect such cables to the primary terminals. The JP series transformers core may be easily opened, and they may be installed and connected without any supply interruption. Thus, saving time and the installation costs

 SCT GENERAL SPECIFICATIONS

• Rated Frequency: 50/60Hz
• Rated insulation voltage: 3kV AC. (1 min)
• Rated short-time thermal current (Ith): 60In / 1s
• Rated dynamic current (Idyn): 2.5Ith
• Rated voltage (Un): 0.72kV AC
• Continuous current (Id): 1.2In
• Operating temperature: -10°C~50°C
• Housing self-extinguishing: class V0
• Safety factor: FS 5
• Ratio: 100/5A to 10000/5A or 20/1A to 3000/1A
• Following Standards: IEC 60044-1, IEC 61869-2
• Environment: Indoor

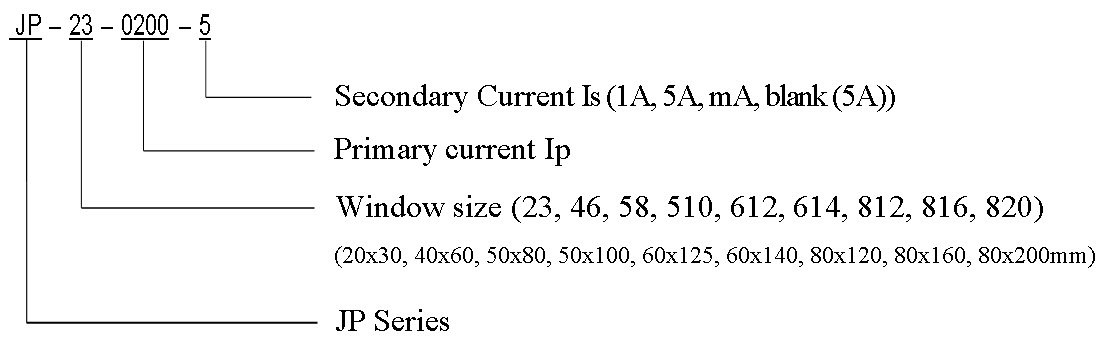

PRODUCT ORDERING CODE STRUCTURE OF JP

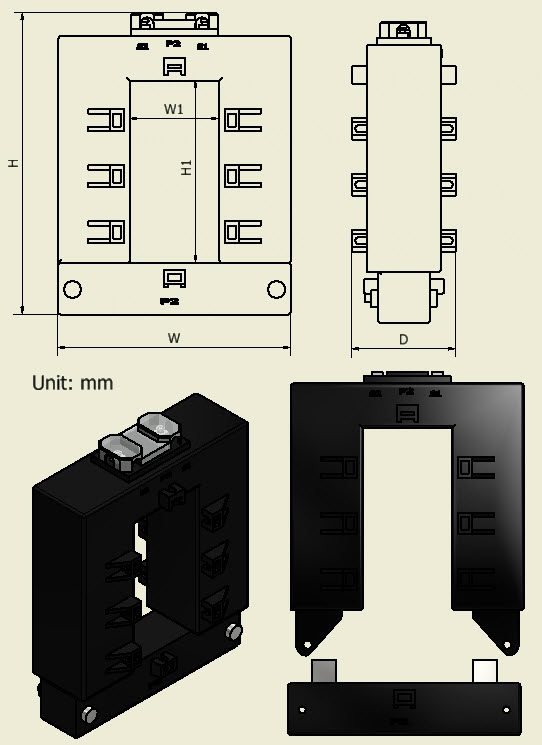

JP OVERAL DIMENSIONS
